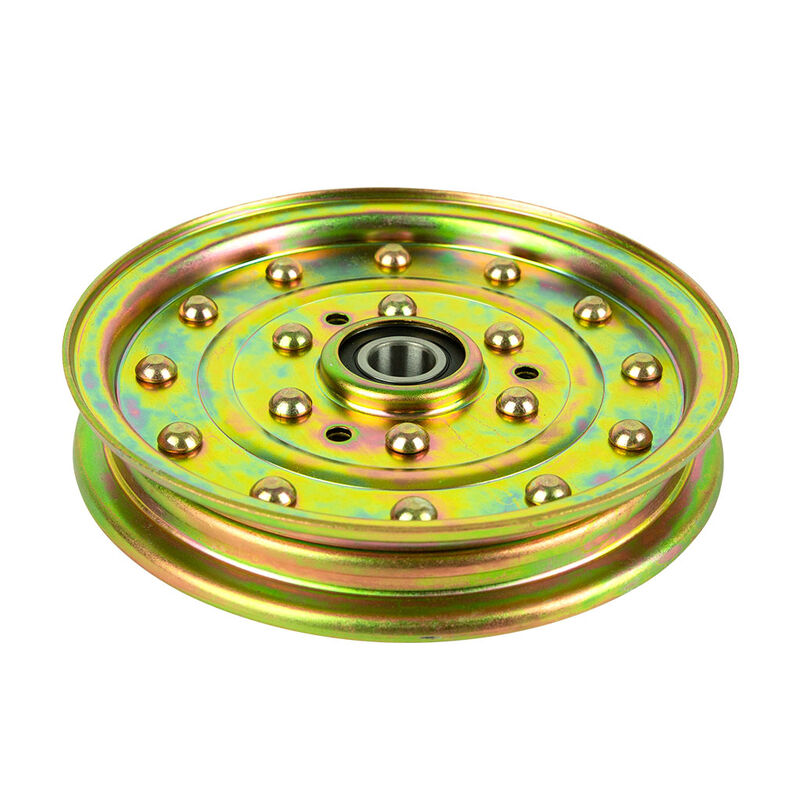

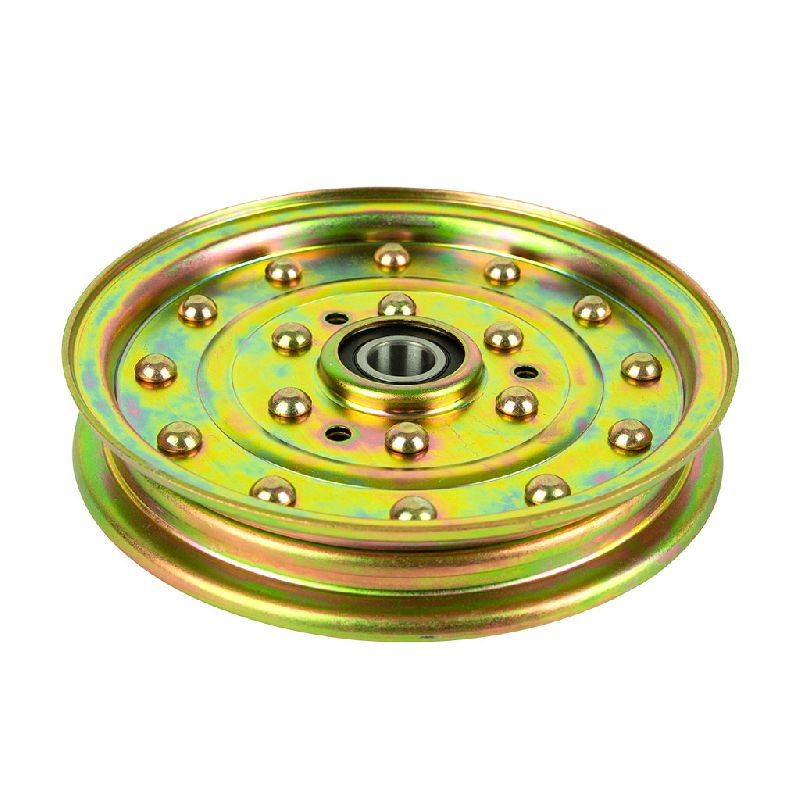

Toro Deck Flat Idler Pulley Suits Z Master
PUL8415
Toro Deck Flat Idler Pulley Suits Z Master
$67
Available
Specifications
Features
Manuals
| Description: | Non-Genuine TORO Z Master - Deck, Steel Flat Idler Pulley |
| Replaces OEM: | TORO 1-633109, 116-4667, 132-9424 |
| Deck (cm) | 122 cm, 132.1 cm, 152.4 cm, 157.5 cm, 183 cm |
| Deck (inches) | 48", 52", 60", 62", 72" |
| Deck (mm) | 1220 mm, 1320 mm, 1524 mm, 1575 mm, 1828 mm |
| Height: (inches) | 1 3/16" |
| Height: (mm) | 30.16 mm |
| Inside Diameter: (inches) | 21/32" |
| Inside Diameter: (mm) | 16.66 mm |
| Outside Diameter: (inches) | 6 3/4" |
| Outside Diameter: (mm) | 171.45 mm |
| Pulley Dimension A: (inches) | 6 3/4" |
| Pulley Dimension A: (mm) | 171.45 mm |
| Pulley Dimension B: (inches) | 6 1/4" |
| Pulley Dimension B: (mm) | 158.75 mm |
| Pulley Dimension C: (inches) | 21/32" |
| Pulley Dimension C: (mm) | 16.66 mm |
| Pulley Dimension D: (inches) | 3/4" |
| Pulley Dimension D: (mm) | 19.05 mm |
| Pulley Dimension T: (inches) | .080" |
| Pulley Dimension T: (mm) | 20.32 mm |
| Fits: | 48" (1220 mm) cut TORO Z Master Z450 (model 74417 [2] years 2005 to 2008), Z453 |
| (models 74417 [2] year 2007 and 74417CP [2] years 2007 to 2008) side-discharge zero | |
| turn radius (ZTR) ride-on models. Please Note: The brackets after model numbers | |
| indicate quantity required per unit [2] = 2 required per unit. | |
| Fits: | 52" (1320 mm) cut TORO Z Master Professional 7000 Series (model 74266 [3] years |
| 2013 to 2019), Z450 (model 74416 [2] years 2007 to 2008), Z453 (model 74416CP [2] | |
| year 2008), Z500 (model 74237CP [3] year 2008), Z528 (models 74237 [3] years 2007 | |
| to 2008 and 74237CP [3] year 2008), Z560 (model 74261 [3] year 2006), Z580-D (model | |
| 74266CP [3] years 2008 to 2009 and 2011) side-discharge zero turn radius (ZTR) | |
| ride-on models. Please Note: The brackets after model numbers indicate quantity | |
| required per unit [2] = 2 required per unit, [3] = 3 required per unit. | |
| Fits: | 60" (1524 mm) cut TORO Z Master Professional 6000 Series (model 74267CP [3] year |
| 2012), Professional 7000 Series (model 74267 [3] years 2013 to 2019), Z500 (model | |
| 74238CP [3] year 2008), Z528 (models 74238 [3] years 2007 to 2008), 74238P [3] | |
| years 2007 to 2008), Z557 (model 74246 [3] year 2005), Z558 (model 74272CP [3] year | |
| 2008), Z560 (models 74262 [3] year 2006 and 74262CP [3] year 2008), Z580 (model | |
| 74253CP [3] year 2008), Z580-D (model 74267CP [3] years 2008 to 2010), Z587L (model | |
| 74251 [3] years 2004 to 2006), Z588E (model 74255 [3] years 2004 to 2007), Z590-D | |
| (models 74268 [2] year 2008 and 74268CP [2] year 2008), Z593-D (model 74265 [3] | |
| year 2006), Z597-D (model 74268 [2] year 2007) side-discharge zero turn radius | |
| (ZTR) ride-on models. Please Note: The brackets after model numbers indicate | |
| quantity required per unit [2] = 2 required per unit, [3] = 3 required per unit. | |
| Fits: | 62" (1575 mm) cut TORO Z Master Z597-D (model 74280TE [2] years 2006 to 2007) |
| rear-discharge zero turn radius (ZTR) ride-on models. Please Note: The brackets | |
| after model numbers indicate quantity required per unit [2] = 2 required per unit. | |
| Fits: | 72" (1828 mm) cut TORO Z Master Professional 7000 Series (models 74274 [3] years |
| 2013 to 2019 and 74274CP [3] year 2012), Z550 (model 74273CP [3] year 2008), Z557 | |
| (models 74257 [3] year 2005 and 74263 [3] year 2006), Z560 (models 74263 [3] year | |
| 2007 and 74263CP [3] year 2008), Z590-D (model 74269CP [2] year 2008), Z595-D | |
| (model 74274 [3] year 2007), Z580-D (models 74274 [3] year 2010 and 74274CP [3] | |
| years 2010 to 2011), Z587L (model 74252 [3] years 2004 to 2006), Z588E (model 74256 | |
| [3] year 2006), Z-590-D (model 74269 [2] year 2008), Z597-D (models 74269 [2] years | |
| 2005 to 2007 and 74269CP [2] years 2007 to 2008) side-discharge zero turn radius | |
| (ZTR) ride-on models. Please Note: The brackets after model numbers indicate | |
| quantity required per unit [2] = 2 required per unit, [3] = 3 required per unit. | |
| Features: | Pressed and riveted Steel. |
| Quality double sealed roller bearing. | |
| Standard Pack Quantity: | 1 |
| Please Note: | The brackets after model numbers indicate quantity required per unit [2] = 2 |
| required per unit, [3] = 3 required per unit. | |
| Brand: | TORO, |
| Product Line: | Deck Idler Pulley, Flat Idler Pulley, Idler Pulley - Deck, Idler Pulley - Flat, |
| Pulley - Flat Idler, | |
