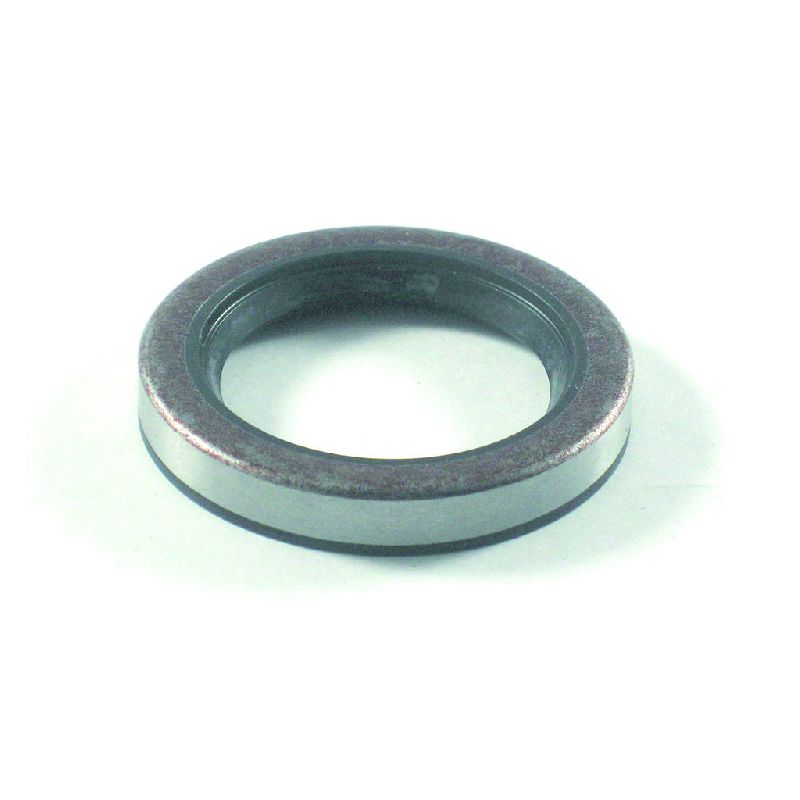

Briggs & Stratton Pto Bottom Seal Suits 6hp 7hp 8hp & 11hp
OIL774
Briggs & Stratton Pto Bottom Seal Suits 6hp 7hp 8hp & 11hp
$8
Available
Specifications
Features
Manuals
| Description: | Non-Genuine Briggs & Stratton Crankshaft Oil Seal |
| Replaces OEM: | Briggs & Stratton 391086, 391086S |
| Fits: | Briggs & Stratton selected 10 hp, 11 hp and 16 hp engines including but not limited |
| to selected types and codes of 251000, 252000, 401000, 402000, 421000 and 422000 | |
| engine model series as the magneto side (top) crankshaft oil seal. | |
| Fits: | Briggs & Stratton selected 6 hp, 7 hp and 8 hp engines including but not limited to |
| selected types and codes of 170000 and 190000 engine model series as the PTO side | |
| (bottom) crankshaft oil seal. | |
| Features: | • Magneto side (top) oil seal on selected 10 hp, 11 hp and 16 hp models. |
| • PTO side (bottom) oil seal on selected 6 hp, 7 hp and 8 hp models | |
| Inside Diameter: (inches) | 1.187” |
| Inside Diameter: (mm) | 30.149 mm |
| Outside Diameter: (inches) | 1.687” |
| Outside Diameter: (mm) | 42.849 mm |
| Width: (inches) | 0.250” |
| Width: (mm) | 6.35 mm |
| Standard Pack Quantity: | 1 |
| Brand: | Briggs & Stratton Non-Genuine, |
| Product Line: | Oil seal, seal - oil, |
