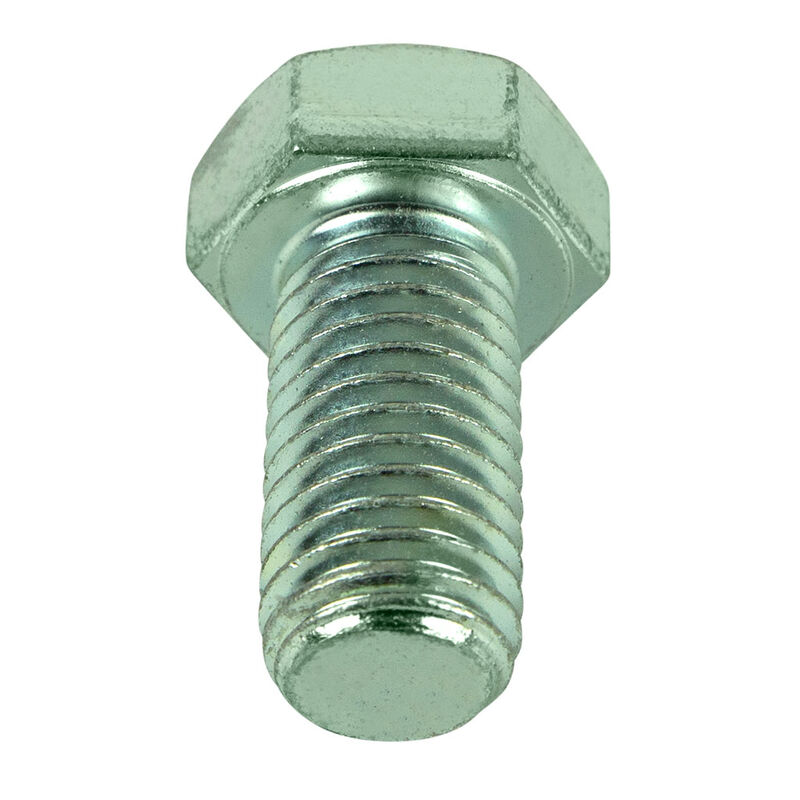

Big Dog / Hustler Blade Mount. Bolt
BLH8528
Big Dog / Hustler Blade Mount. Bolt
$6
Available
Specifications
Features
Manuals
| Description: | Non-Genuine BigDog, HUSTLER Blade Mounting Bolt, Deck Lift Bolt & Pulley Mounting |
| Bolt | |
| Replaces OEM: | BigDog 781872, |
| HUSTLER 781872, | |
| Diameter: (inches) | 5/8" |
| Length: (in): | 1 1/4" |
| Thread Size: | 5/8"-11 x 1 1/4" Grade 5, Right Hand Thread. |
| Deck (inches) | 36", 42", 46", 48", 52", 54", 60", 66", 72", 104", |
| Deck (mm) | 915 mm, 1067 mm, 1168 mm, 1220 mm, 1320 mm, 1372 mm, 1524 mm, 1676 mm, 1829 mm, 2642 mm, |
| Deck (cm) | 91.5 cm, 106.7 cm, 116.8 m, 122 cm, 132 cm, 137.2 cm, 152.4 cm, 167.6 cm, 182.9 cm, 264.2 cm, |
| Fits: | 36" (915 mm) cut BigDog zero turn radius (ZTR) ride-on models including but not |
| limited to A Series (model 931337EX) as a blade mounting bolt. | |
| Fits: | 42" (1067 mm) cut BigDog zero turn radius (ZTR) ride-on models including but not |
| limited to A Series (model 931345EX), Alpha MP (model 936393EX), C Series (models | |
| 931428EX, 931436EX and 933572EX) as a blade mounting bolt and C Series (models | |
| 931428EX, 931436EX and 933572EX) as a deck spindle pulley mounting bolt. | |
| Fits: | 46" (1168 mm) cut BigDog zero turn radius (ZTR) ride-on models including but not |
| limited to C Series (models 931451EX and 933580EX) as a blade mounting bolt. | |
| Fits: | 48" (1168 mm) cut BigDog zero turn radius (ZTR) ride-on models including but not |
| limited to Alpha MP (models 932947EX, 936526EX and 937581EX), R Series (model | |
| 931493AU) and Stout (models 9333549EX, 933747EX, 935502EX and 937649EX) as a blade | |
| mounting bolt. | |
| Fits: | Fits05: 52" (1320 mm) cut BigDog zero turn radius (ZTR) ride-on models including |
| but not limited to Diablo (models 933366EX, 935551EX and 936344EX) as a blade | |
| mounting bolt and Diablo (models 933366EX and 935551EX) as a deck lift mounting | |
| bolt. | |
| Fits: | 54" (1372 mm) cut Big Dog zero turn radius (ZTR) ride-on models including but not |
| limited to Alpha MP (models 932939EX, 936518EX and 937573EX), C Series (model | |
| 933598EX), R Series (model 931519EX) and Stout (models 933556EX, 933754EX, 935510EX | |
| and 937656EX) as a blade mounting bolt. | |
| Fits: | 60" (1524 mm) cut BigDog zero turn radius (ZTR) ride-on models including but not |
| limited to Diablo (models 933242EX, 935569EX and 936351EX), Diablo MP (models | |
| 933291EX, 935122EX and 937292EX), R Series (model 931535AU), Stout (models | |
| 933168EX, 933762EX, 935528EX and 937664EX) as a blade mounting bolt and Diablo | |
| (models 931402EX, 933242EX and 935569EX) and Diablo MP (models 933291EX and | |
| 935122EX) models as a deck lift mounting bolt. | |
| Fits: | 72" (1829 mm) cut BigDog zero turn radius (ZTR) ride-on models including but not |
| limited to Diablo MP (models 933275EX, 935106EX and 936443EX) zero turn radius | |
| (ZTR) ride-on models as a blade mounting bolt and Diablo MP (models 933275EX, | |
| 935106EX and 936443EX) and X Diablo (model 931410EX) as a deck lift mounting bolt. | |
| Fits: | 36" (915 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to Raptor SD (models 935262EX and 938365EX), SuperDuty (models 931253EX and | |
| 932491EX), Super S, Stand-Ons (model 940288EX) ZTR stand-on models as a blade | |
| mounting bolt and SuperDuty (model 931253EX) as a deck spindle pulley mounting bolt | |
| and Super S, Stand-Ons (model 940288EX) ZTR stand-on models as a pump drive, idler | |
| pulley mounting bolt. | |
| Fits: | 42" (1067 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to Raptor SD (models 935270EX, 936559EX and 938407EX), Raptor X (model | |
| 940494EX), Raptor XD (model 939819EX), Sport (models 930198EX, 930206EX and | |
| 932293EX) and SuperDuty (model 932517EX) as a blade mounting bolt and Sport (models | |
| 930198EX, 930206EX and 932293EX) as a deck spindle pulley mounting bolt. | |
| Fits: | 48" (1168 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to FasTrak (models 928267EX, 928275EX, 928291EX, 928502EX, 930107EX, | |
| 933424EX, 933523EX, 938704EX and 940346EX), FasTrak SDX (models 938779EX and | |
| 940411EX), Raptor Flip-up (model 935288EX), Raptor SD (models 932566EX, 936542EX | |
| and 938399EX), Raptor XD (model 940510EX), Raptor XDX (model 941492EX), Sport | |
| (model 930222EX), SuperDuty (models 930123EX, 932426EX and 933481EX), SuperDuty X | |
| (model 933945EX), X-One (models 934133EX, 933135EX and 934497EX) as a blade | |
| mounting bolt and X-One (model 933135EX, 934133EX and 934497EX) as a deck lift | |
| mounting bolt and FasTrak (models 928267EX, 928275EX, 928291EX, 928502EX, 930107EX | |
| and 933523EX), SuperDuty (models 930123EX and 932426EX) as a deck spindle pulley | |
| mounting bolt and Raptor Flip-up (model 935288EX) as a deck pulley mounting bolt | |
| and FasTrak (models 928267EX, 928275EX, 928291EX and 928502EX) and Raptor Flip-up | |
| (model 935288EX) as a pump drive, idler pulley mounting bolt. | |
| Fits: | 54" (1372 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to FasTrak (models 930115EX, 933432EX, 933531EX, 938712EX and 940353EX), | |
| FasTrak SDX (models 933952EX, 938787EX and 940429EX), Raptor SD (models 932558EX, | |
| 936534EX and 938381EX), Raptor X (model 940502EX), Raptor XD (model 939751EX), | |
| Raptor XDX (model 941500EX), Sport (model 933473EX), SuperDuty (models 930149EX, | |
| 932434EX and 933499EX), Super Z HD (models 938100EX and 938878EX), X-One (models | |
| 932780EX, 934158EX, 934810EX, 936740EX and 941112EX), Z Diesel (models 931196EX and | |
| 932665EX) as a blade mounting bolt and Super Z HD (model 938100EX) and X-One | |
| (models 932780EX, 934158EX and 934810EX), Z Diesel (models 931196EX and 932665EX) | |
| as a deck lift mounting bolt and FasTrak (models 930115EX and 933531EX), SuperDuty | |
| (models 930149EX and 932434EX) as a deck spindle pulley mounting bolt. | |
| Fits: | 60" (1524 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to FasTrak (models 930784EX, 933440EX, 938720EX and 940361EX), FasTrak SDX | |
| (models 938795EX and 940437EX), Raptor XDX (model 941518EX), SuperDuty (models | |
| 930164EX, 932442EX and 933507EX), Super Duty X (model 933960EX), Super Z & Super Z | |
| HD (models 932160EX, 932178EX, 934927EX, 935254EX, 935320EX, 937003EX, 937060EX, | |
| 937078EX, 938118EX, 938126EX, 938886EX, 941146EX and 941195EX), Super Z Hyperdrive | |
| (model 941310EX and *941336EX), Super Z Hyperdrive EFI (model 940551EX), X-One | |
| (models 934174EX, 934836EX, 936799EX, 941120EX and 932723EX) and Z Diesel (models | |
| 931204EX, *931212EX, 932673EX, *932681EX, 938183EX and *938191EX) as a blade | |
| mounting bolt and Super Z & Super Z HD (models 929935EX, 930024EX, 932160EX, | |
| 932178EX, 934927EX, 935254EX, 935320EX, 938118EX and 938126EX), X-One (models | |
| 932723EX, 934174EX and 934836EX) and Z Diesel (models 931204EX, 931212EX, 932673EX, | |
| 932681EX, 932699EX, 938183EX and 938191EX) as a deck lift mounting bolt and FasTrak | |
| (model 930784EX) and SuperDuty (models 930164EX and 932442EX) models as a deck | |
| spindle pulley mounting bolt. | |
| Fits: | 66” (1676 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to Super Z & Super Z HD (models 932657EX, 935494EX and 937102EX) as a blade | |
| mounting bolt and (models 932657EX, 929943EX and 935494EX) as a deck lift mounting | |
| bolt. | |
| Fits: | 72" (1829 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to Super Z & Super Z HD (models 932152EX, 934950EX, 935338EX, 937037EX and | |
| 937086EX), Super Z Hyperdrive (model 941344EX), Super Z Hyperdrive EFI (model | |
| 940577EX) and Z Diesel (models 931238EX, 932699EX and 938225EX) as a blade mounting | |
| bolt and Super Z & Super Z HD (models 929943EX, 929950EX, 932152EX, 934950EX and | |
| 935338EX) and Z Diesel (models 931238EX, 932699EX and 938225EX) as a deck lift | |
| mounting bolt. | |
| Fits: | 104" (2642 mm) cut HUSTLER zero turn radius (ZTR) ride-on models including but not |
| limited to Super 104 (models *931733EX, *938910EX, *939603EX and *940544EX) as a | |
| blade mounting bolt and Super 104 (model 931733EX, 938910EX, 939603EX and 940544EX) | |
| as a deck lift mounting bolt and Super 104 (model 931733EX) as a caster wheel | |
| mounting bolt. | |
| Standard Pack Quantity: | 5 |
| Please Note: | *The models with an asterisk also use left hand threaded blade mounting bolt/s in |
| the set which is not included in this packet. | |
| Brand: | BigDog Non-Genuine, HUSTLER Non-Genuine, |
| Product Line: | Blade Mounting Bolt, Bolt - Blade Mounting, Bolt - Deck Lift, Deck Lift Bolt, Deck |
| Pulley Mounting Bolt, Mounting Bolt – Blade, Pump Drive Idler Pulley Mounting | |
| Bolt. | |
