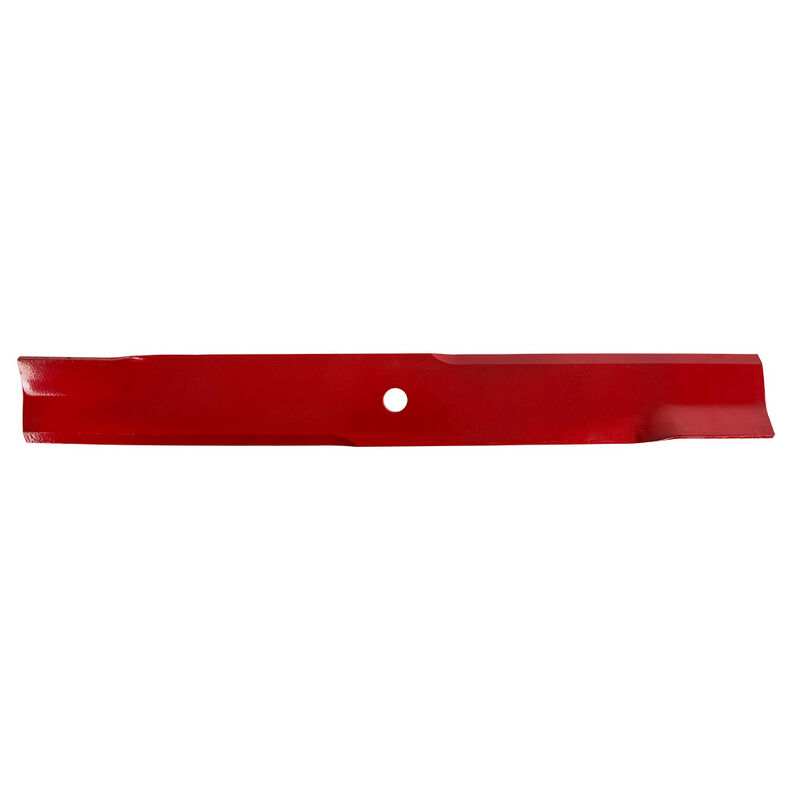

Hustler Bar Blade 20-1/2" X 5/8" Rear Discharge 60" & 104
BLR8584
Hustler Bar Blade 20-1/2" X 5/8" Rear Discharge 60" & 104" Deck
$47
Available
Specifications
Features
Manuals
| Description: | Non-Genuine HUSTLER 60" & 104" Cut Low Flute, Left Hand Cut Standard Type Bar Blade |
| Replaces OEM: | HUSTLER: 795633 |
| Centre Hole Diameter: (inches) | 5/8" |
| Centre Hole Diameter: (mm) | 15.875 mm |
| Deck (inches) | 60" & 104" Cut. |
| Deck (mm) | 1524 mm & 2642 mm Cut. |
| Deck (cm) | 152.4 cm & 264.2 cm Cut. |
| Length: (in) | 20 1/2" |
| Length: (mm) | 520.7 mm |
| Thickness: (inches) | .204" |
| Thickness: (mm) | 5.1816 mm |
| Width: (inches) | 2 1/2" |
| Width: (mm) | 63.5 mm |
| Centre Hole Type: | Round |
| Fits: | 60" (1524 mm) cut HUSTLER Super Z (models HU930024EX, HU932178EX, HU935320EX, |
| HU938126EX and HU941195EX), Super Z Hyperdrive (models HU941336EX and HU937078EX) | |
| and Z Diezel (models HU931212EX and HU938191EX) rear discharge zero turn radius | |
| (ZTR) models. | |
| Qty required per unit: | For 60" cut rear discharge decks use BLR6918 (replaces OEM: 600901) x 2 qty and |
| BLR8584 (replaces OEM: 795633) x 1 qty. | |
| Fits: | 104" (2642 mm) cut HUSTLER Super 104 (models HU931733EX, HU938910EX, HU939603EX and |
| HU940544EX (*on the centre rear discharge deck only) zero turn radius (ZTR) models. | |
| Qty required per unit: | *For the centre rear discharge decks use BLR6918 (replaces OEM: 600901) x 2 qty and |
| BLR8584 (replaces OEM: 795633) x 1 qty. | |
| Features: | Standard type flat bar blade with low formed flutes, left hand cut (counter |
| clockwise rotation). | |
| Standard Pack Quantity: | 1 |
| Please Note: | All bar bades are sold as singles, please order the quantity required to make up a |
| set. | |
| Brand: | HUSTLER Non-Genuine, |
| Product Line: | Bar Blade, Blade Bar, Low lift Bar Blade, Ride-On Blade, Standard Type Bar Blade, |
