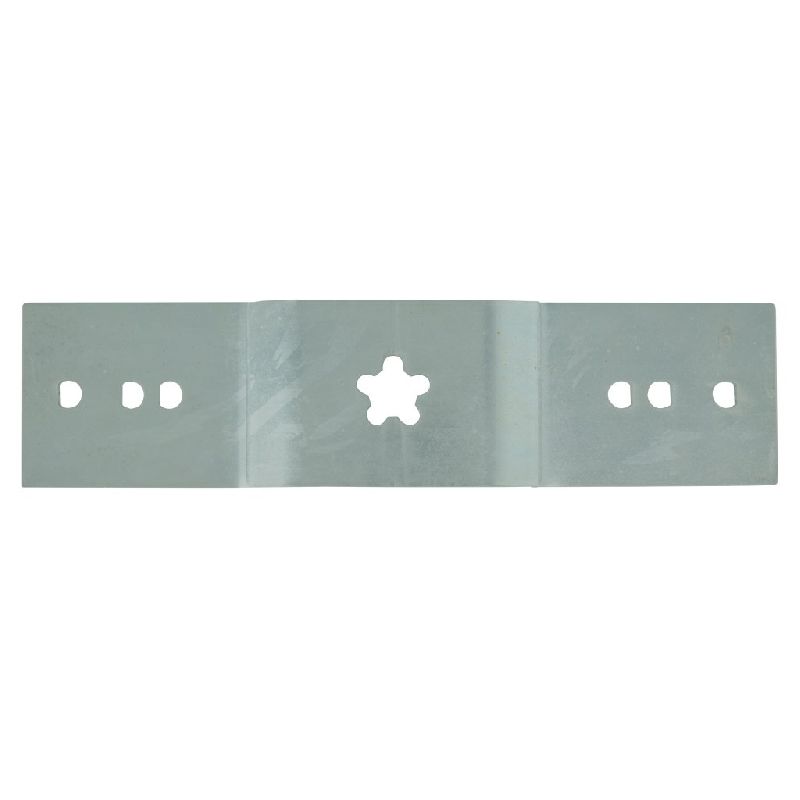

Husqvarna Stepped Blade Bar Adapter 5-point Star Hole
BLH409
Husqvarna Stepped Blade Bar Adapter 5-point Star Hole
$61
Available
Specifications
Features
Manuals
| Description: | Non-Genuine Husqvarna Selected 36", 38", 42", 46" And 54" Cut Stepped, 5 Point Star |
| Hole, Swing Back Blade Conversion Carrier Bar | |
| Centre Hole Type: | 5-Point Star |
| Fits: | 36" (915 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star |
| centre hole blade. | |
| Qty required per unit: | 2 bars required for 36" cut |
| Fits: | 38" (965 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star |
| centre hole blade. | |
| Qty required per unit: | 2 bars required for 38" cut |
| Fits: | 42" (1067 mm) cut Husqvarna selected ride-on lawn mower models using a standard |
| blade system with a 5-point star centre hole blade. | |
| Qty required per unit: | 2 bars required for 42" cut |
| Fits: | 42" (1067 mm) cut Husqvarna TS242 (model 96041038400, year 2015) side discharge |
| lawn tractors as a swing back blade carrier replacement option to the Rapid Release | |
| bar blades (please read the product note below for a full list of components | |
| required). | |
| Qty required per unit: | 2 bars required for 42" cut |
| Fits: | 46" cut Husqvarna TS246 (model 96041038500, year 2015) side discharge lawn tractors |
| as a swing back blade carrier replacement option to the Rapid Release bar blades | |
| (please read the product note below for a full list of components required). | |
| Qty required per unit: | 2 bars required for 46" cut |
| Fits: | 54" (1372 mm) cut Husqvarna selected ride-on lawn mower models using a 5-point star |
| centre hole blade. | |
| Qty required per unit: | 3 bars required for 54" cut |
| Features: | • Converts units which came standard off the production line with bar blades and |
| allows them to be fitted with swing back blades. Please order the swing back blades | |
| separately from the options listed below. | |
| • Stepped carrier bar | |
| • Inner "D" holes: 6.181" (157 mm) | |
| • Middle "D" holes: 7.283" (185 mm) | |
| • Outer "D" holes: 9.055" (230 mm) | |
| Standard Pack Quantity: | 1 |
| Note: | All blade carriers are sold as singles, order the quantity required to make up a |
| set. | |
| Please Note: | For standard 36", 38" & 42" cut Lawn Tractor models use with our BLS3653 x 2 qty |
| blade sets and BBN3722 x 2 qty bolt sets or for a blade and bolt combo option use | |
| our BRC5543 x 2 qty. | |
| Or | |
| For 54" cut: Use with our BLS3653 x 3 qty blade sets and BBN3722 x 3 qty bolt sets, | |
| or for a blade and bolt combo pack option use our BRC5543 x 3 qty. | |
| Or | |
| For Rapid Release 42" cut models the components required to replace the Rapid | |
| Release bar blade system are - | |
| • Use BLH409 blade carriers x 2 qty | |
| • Use BLH7733 mounting bolt and washer x 2 qty | |
| • Use BLS3653 blade sets x 2 qty | |
| • Use BBN3722 bolt sets x 2 qty | |
| • Or use our blade and bolt combo pack option BRC5543 x 2 qty | |
| (The above components can be used as a swing back blade option to replace Husqvarna | |
| Rapid Release bar blade OEM: 580 92 11-01) | |
| Please Note: For this application please assemble blades and bolts using the | |
| outside blade mounting holes of the blade carrier. | |
| **Please also note: to replace the rapid release bar blade system with the swing | |
| back blade and blade carrier systems above it is necessary to remove the rapid | |
| release mounting system components and return to the conventional bolt on mounting | |
| system for the carrier bar.** | |
| Or | |
| For Rapid Release 46" cut models the components required to replace the Rapid | |
| Release bar blades are - | |
| • Use BLH409 blade carriers x 2 qty | |
| • Use BLH7733 mounting bolt and washer x 2 qty | |
| • Use BLS3817 blade sets x 2 qty | |
| • Use BBN3722 bolt sets x 2 qty | |
| • Or use our blade and bolt combo pack option BRC5544 x 2 qty | |
| (The above components can be used as a swing back blade option to replace Husqvarna | |
| Rapid Release bar blade OEM: 581 04 39-01) | |
| Please Note: For this application please assemble blades and bolts using the middle | |
| blade mounting holes of the blade carrier. | |
| **Please also note: to replace the rapid release bar blade system with the swing | |
| back blade and blade carrier systems above it is necessary to remove the rapid | |
| release mounting system components and return to the conventional bolt on mounting | |
| system for the carrier bar.** | |
| Brand: | Husqvarna - Non Genuine |
| Product Line: | Blade, carrier |
