Prokut Rim Sprocket System 0.325 Pitch 7-teeth
GAF513442
Prokut Rim Sprocket System 0.325 Pitch 7-teeth
$66
Available
Specifications
Features
Manuals

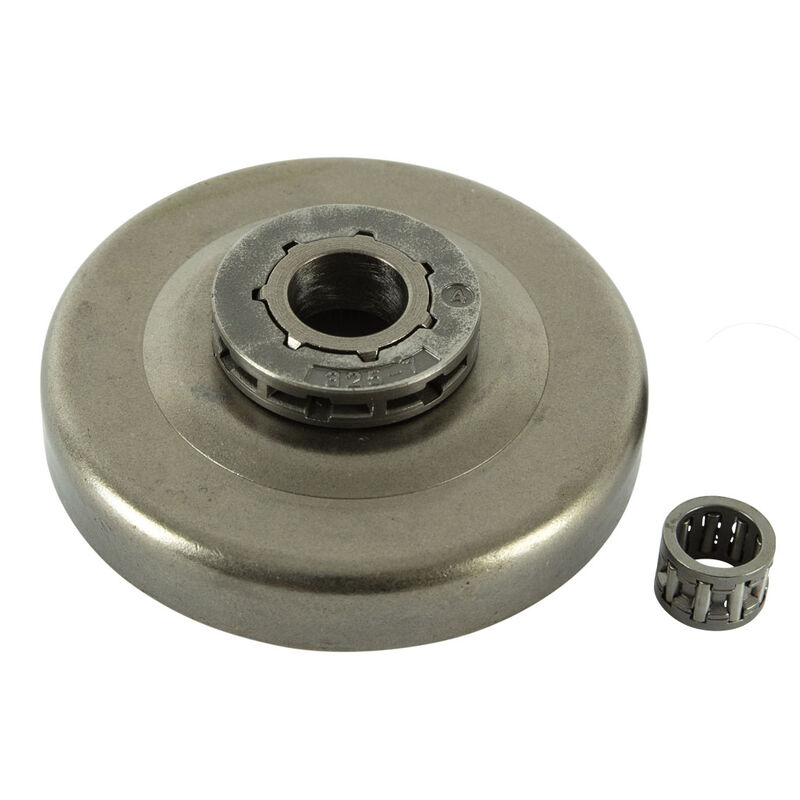

| Description: | PROKUT™ Centre Drive Rim Sprocket System .325" Pitch, Small 7 Spline x 7 Drive |
| Teeth - Suits Selected Echo And John Deere | |
| Editorial: | ProKut™ chainsaw rim sprocket systems feature a floating rim which moves on a |
| splined hub to ensure the chain is perfectly aligned with the groove in the guide | |
| bar resulting in longer life of all cutting components. | |
| Features: | • All ProKut™ sprocket assemblies come with the sprocket bearing included |
| • ProKut™ sprockets are economical and long wearing | |
| Replaces OEM: | OREGON® 513442 |
| Crankshaft Diameter: | 0.394" |
| Pitch: | .325" |
| System: | Yes, a rim type sprocket system |
| Spline: | Small 7 spline (SM7) |
| Teeth: | 7 Drive Teeth |
| Fits: | Echo CS-400EVL, CS-440, CS-440EVL, CS-510, CS-3600, CS-3700, CS-3900, CS-4200ES, |
| CS-4400, CS-4200ES, CS-4400, CS-5100 (After Serial # 134504) model chainsaws when | |
| fitted with .325" pitch chain. Note: Please check your saw carefully prior to | |
| ordering, some of these saw models were also released fitted with a 3/8" pitch | |
| cutting system. | |
| Fits: | John Deere 45 model chainsaws when fitted with .325" pitch chain. Note: Please |
| check your saw carefully prior to ordering, some of these saw models were also | |
| released fitted with a 3/8" pitch cutting system. | |
| Standard Pack Quantity: | 1 |
| Please Note: | Replaces our part number OMK513442. For a replacement rim use our part number |
| GAF11892. For a one-piece spur sprocket option use our part number GAF513444. | |
| Brand: | PROKUT™, GA Forestry Accessories™ |
| Product Line: | Chainsaw sprocket, forestry parts, rim sprocket system, |
