Prokut Combimatic Precision Auto Chain Grinder 3/4
GAF11609012
Prokut Combimatic Precision Auto Chain Grinder 3/4
$12,220
Available
Specifications
Features
Manuals

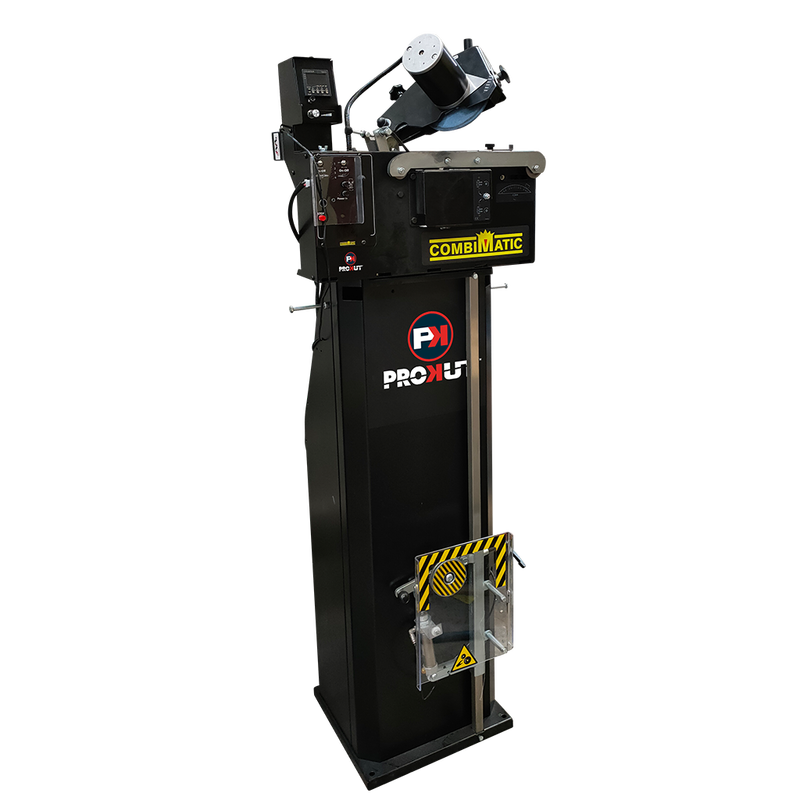

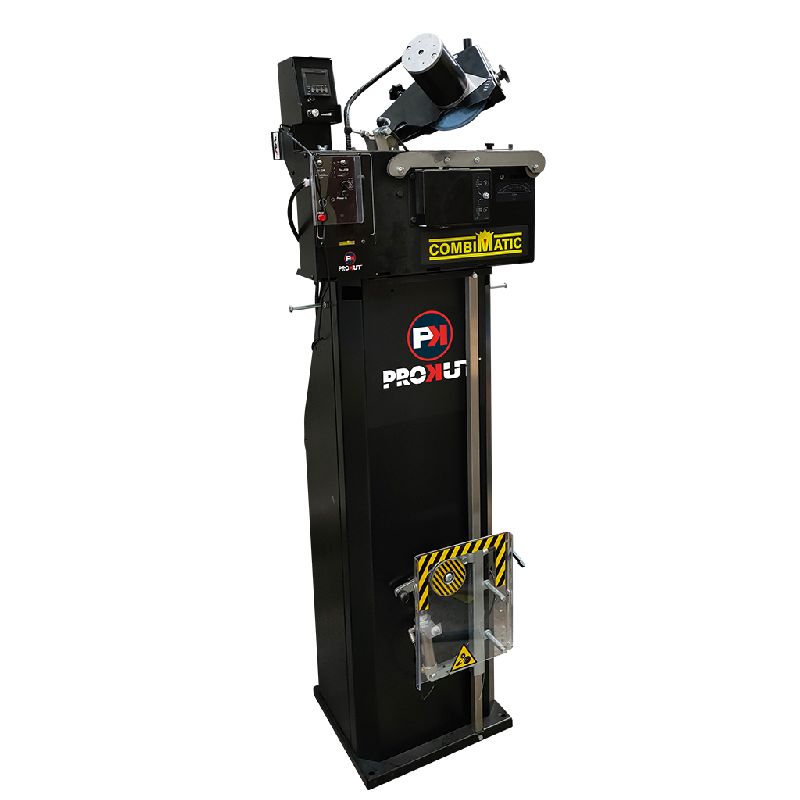

| Description: | PROKUT Combimatic .325" to 3/4" Pitch, 240V Automatic Chainsaw Chain Grinder |
| Editorial: | Built to meet the tough standards of forestry cutting and harvesting, the PROKUT |
| Combimatic automatic chainsaw chain grinder is easy to transport, mount and set up. | |
| The grinder is fully adjustable in accordance with the size of the cutting link and | |
| the length of the saw chains. It takes only a few manual adjustments and then the | |
| grinder will operate all by itself. All angles, depths and lengths can be adjusted | |
| according to the manufacturer’s recommendations and the speed is stepless. On the | |
| digital counter you dial in the number of cutting links of the saw chain. Then you | |
| simply start the grinder and it will automatically stop when the selected number of | |
| cutting links have been ground and are ready to use. The grinder can cut up to 4 mm | |
| per tooth and can easily be adjusted to cut as is required, this without any colour | |
| change of the cutting link (turning blue) or loss of the hardening quality. Thanks | |
| to a very efficient construction with few moving parts our grinding machines | |
| require a minimum of maintenance. On top of that there is no need for water cooling | |
| which further simplifies operation. | |
| The PROKUT Combimatic automatic chain grinder is a must for every busy workshop. | |
| Features: | Fully automatic sharpening machine for .325", 3/8", .404" and 3/4" pitch chains. |
| Includes digital counter. | |
| Individually adjustable speed setting to enable grinding a 3/4″ cutting link in | |
| one operation, without turning it blue. | |
| Adjustable depth centering at the grinding head, easily set by a knob. | |
| Very high grinding capacity. | |
| Simple to use and easy to adjust. | |
| Grinding angle is easy to adjust between 0°-35°. Enables easy grinding of, for | |
| example, sawmill chains. | |
| Specifications: | Supply Voltage: Australian standards 240 volt. |
| Over-current protection: Automatic fuse type ptc. | |
| Rotation speed (Grinding motor): 2800 rpm (no load). | |
| Peripheral speed: 22 m/s. | |
| Top-plate angle (Grinding angle): 0 – 35° (default 30°). | |
| Grinding wheel dimensions: Outer diameter (OD) × Width (W) × Inner diameter (ID): | |
| 150 mm x 4 mm x 16 mm (5 7/8” x 0.157” x 5/8”) [One is included with unit]. | |
| Max dimensions for the Combimatic Auto Chain Grinder - Length (L) x Width (W) x | |
| Height (H): 475 mm x 140 mm x 395 mm (18.70” x 5.51” x 15.55”). | |
| stand.][] | |
| Dimensions, stand: Length (L) x Width (W) x Height (H): 400 mm x 460 mm x 1070 mm | |
| (15.74” x 18.11” x 42.12”). | |
| Weight, machine: 15.9 kg. (Without stand). | |
| Compressed air supply pressure: 5 – 8 Bar (75 – 116 PSI). | |
| Standard Pack Quantity: | 1 |
| Note: | As well as being supplied with a grinding wheel an adaptor / reducer bush is |
| included with the grinder allowing for the following high quality grinding wheels | |
| (which can be purchased separately) to be used - | |
| a) PROKUT *CBN grinding wheel for sharpening 1/4", .325" and 3/8" LP chainsaw | |
| chains part number GAF7742. | |
| b) PROKUT *CBN grinding wheel for sharpening 3/8" Std pitch chainsaw chains part | |
| number GAF7743. | |
| c) PROKUT *CBN grinding wheel for sharpening .404" pitch chainsaw chains part | |
| number GAF7746. | |
| d) PROKUT †Diamond grinding wheel for sharpening .325" And 3/8" LP Tungsten | |
| chainsaw chains part number GAF7789. | |
| e) PROKUT †Diamond grinding wheel for sharpening 3/8" Std and .404" pitch | |
| Tungsten chainsaw chains part number GAF7791. | |
| f) PROKUT *CBN grinding wheel for sharpening 3/4" pitch chainsaw chains part number | |
| GAF7748. | |
| Please Note: | *CBN grinding wheels are made from Cubic Boron Nitride (CBN) and are designed for |
| grinding hardened steel (standard chainsaw chains). CBN wheels are not designed for | |
| use on Tungsten Carbide chain and doing so will destroy the wheel and void | |
| warranty. †Diamond wheels are designed for sharpening tungsten chainsaw chain | |
| only, Not for use on standard chain and doing so will destroy the wheel and void | |
| warranty. | |
| Optional accessories sold separately include part numbers: | |
| GAF10829024 PROKUT Tecomec VCPRO wet and dry vacuum. | |
| GAFK00112016 Dust extraction suction hose kit for wet and dry vacuum. | |
| GAFK00200437 Flexible hose exhaust tubing. | |
| GAFK00200431 Air cooling kit. | |
| GAFK00200430 Telescopic chain extension. | |
| Footnote: | For an automatic chain grinder suitable for use with 1/4" to .404" pitch chains and |
| 3/8" Skip Tooth use our PROKUT Sensomatic grinder part number GAF11609011. The | |
| PROKUT Sensomatic grinder is an automatic sharpening machine which sharpens the | |
| cutter, the gullet and the raker in one motion. | |
